design options

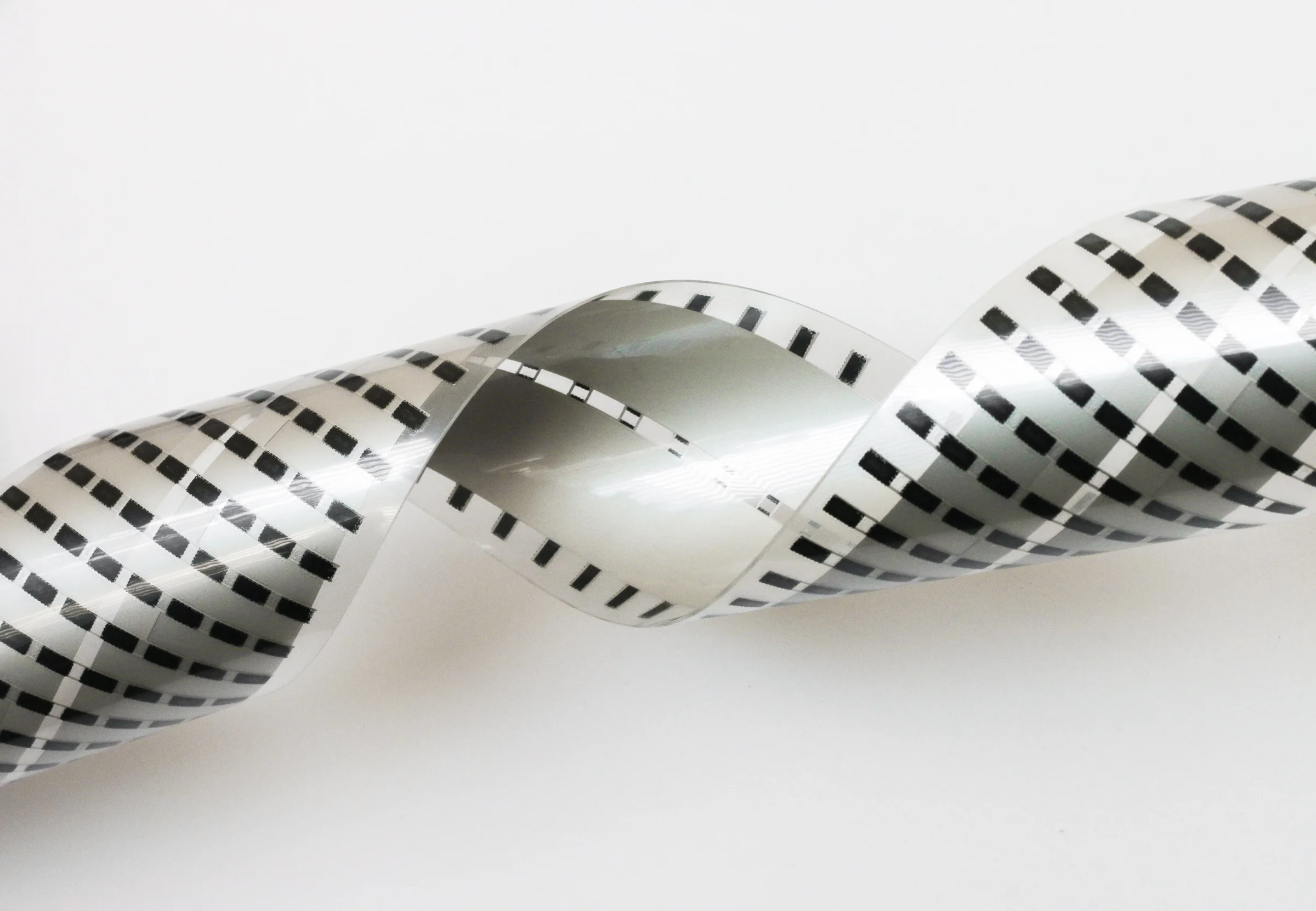

Reliaheat® Positive Temperature Coefficient (PTC) heaters are created with Double-Sided Polymer Circuitry (D/SPC®) and can be designed for custom temperatures up to 120⁰C. Reliatrace® has over 25 years of experience with double-sided design in printed electronics and a dedicated team of engineers to guide you through every step of the development process. Our Reliaheat PTC heaters offer many customizable design options.


Specifications

  • Temperature: any custom temperature up to 120⁰C

  • Substrate: large variety of base substrates and sizes - most popular are polyester, polyetherimide, polyimide

  • Voltage: AC or DC voltage up to 220 volts

  • Amperage: power dissipation is variable depending upon substrate used

  • Geometry: 2D and 3D designs possible

  • Shape: conformable design that allows for custom shapes of almost any size and dimension

  • Adhesion: wide variety of compatible and affordable adhesives

  • Connectivity options: many connection systems to power available, including AMP, Nicomatic and Deutsch



Ready to get started with the design of your innovative Reliaheat® PTC heater prototype?
